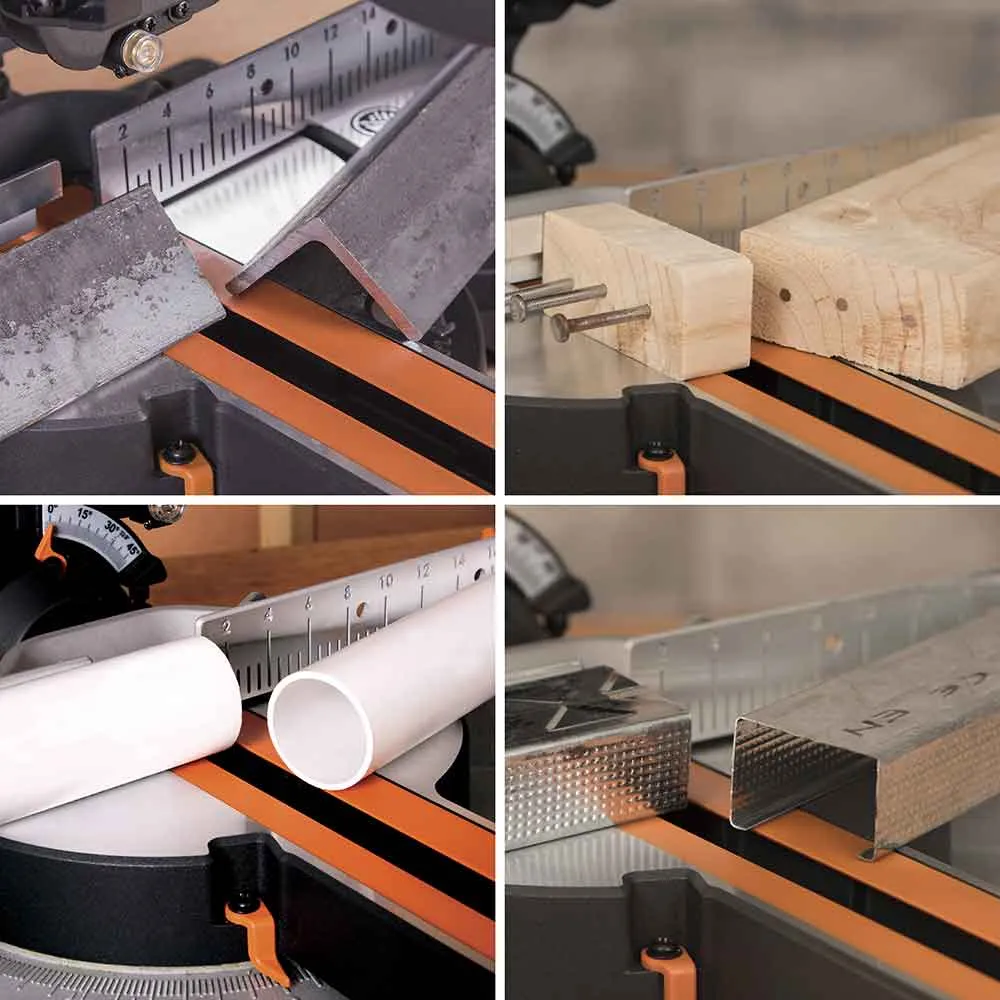

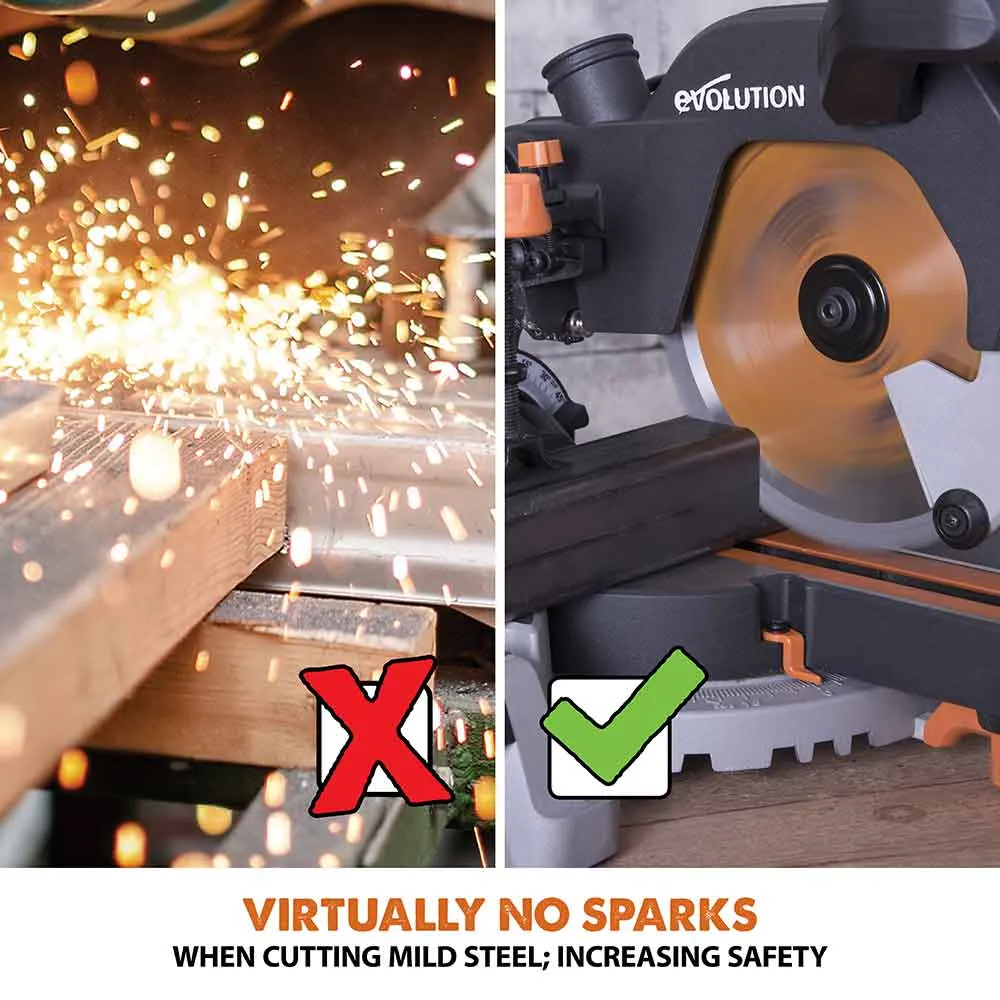

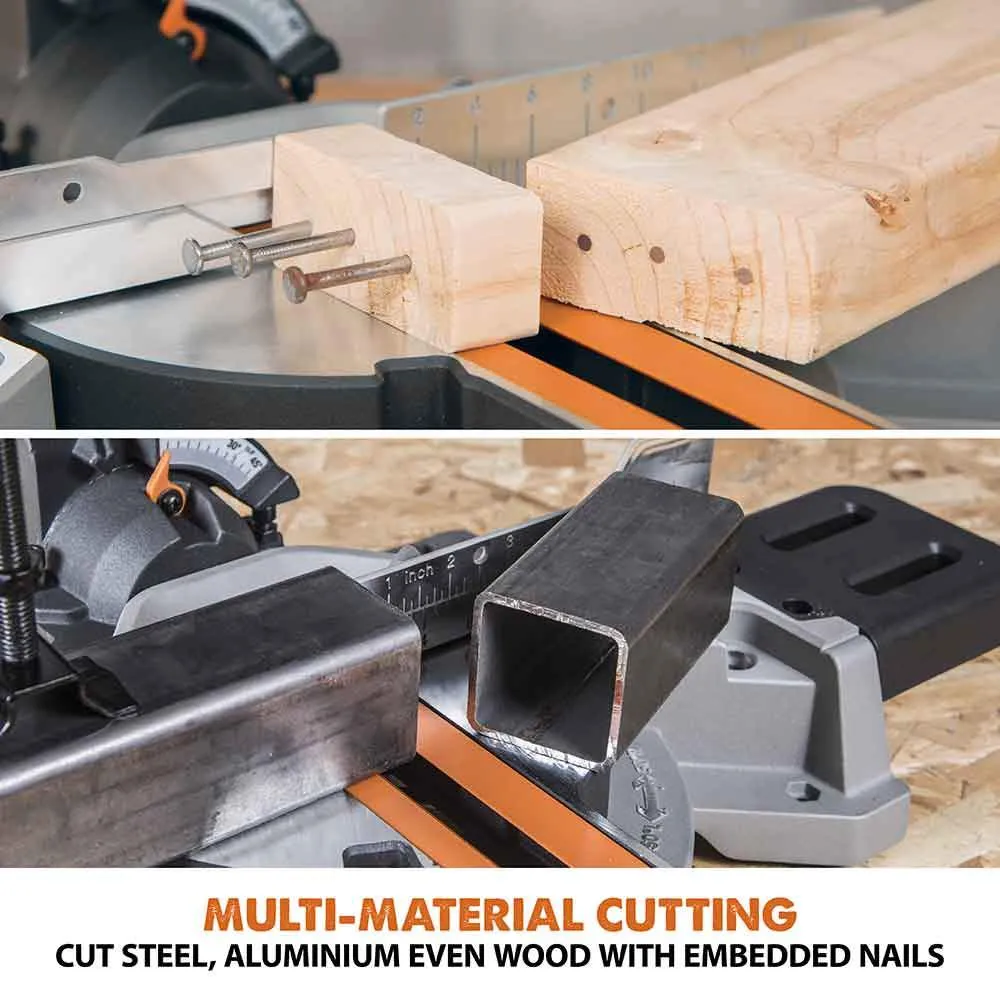

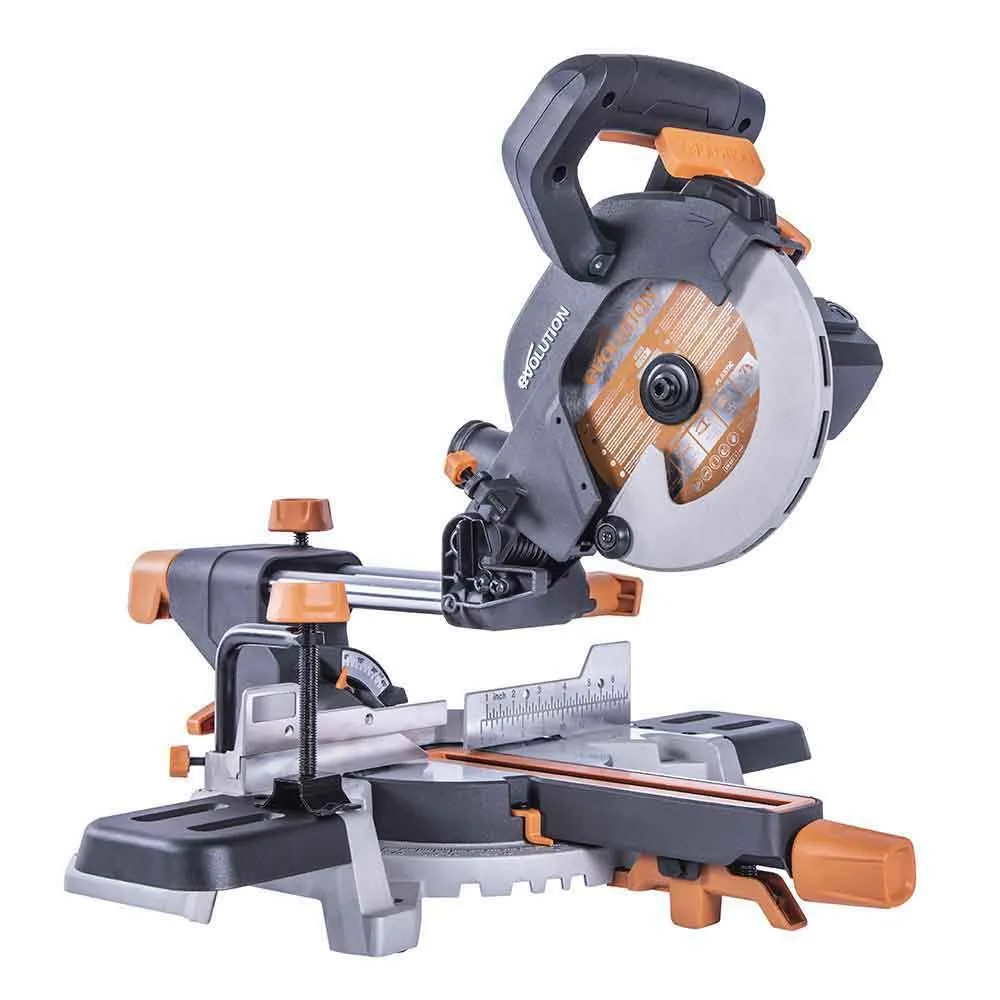

- Multi-Material cutting technology. One saw, one blade, cuts all.*

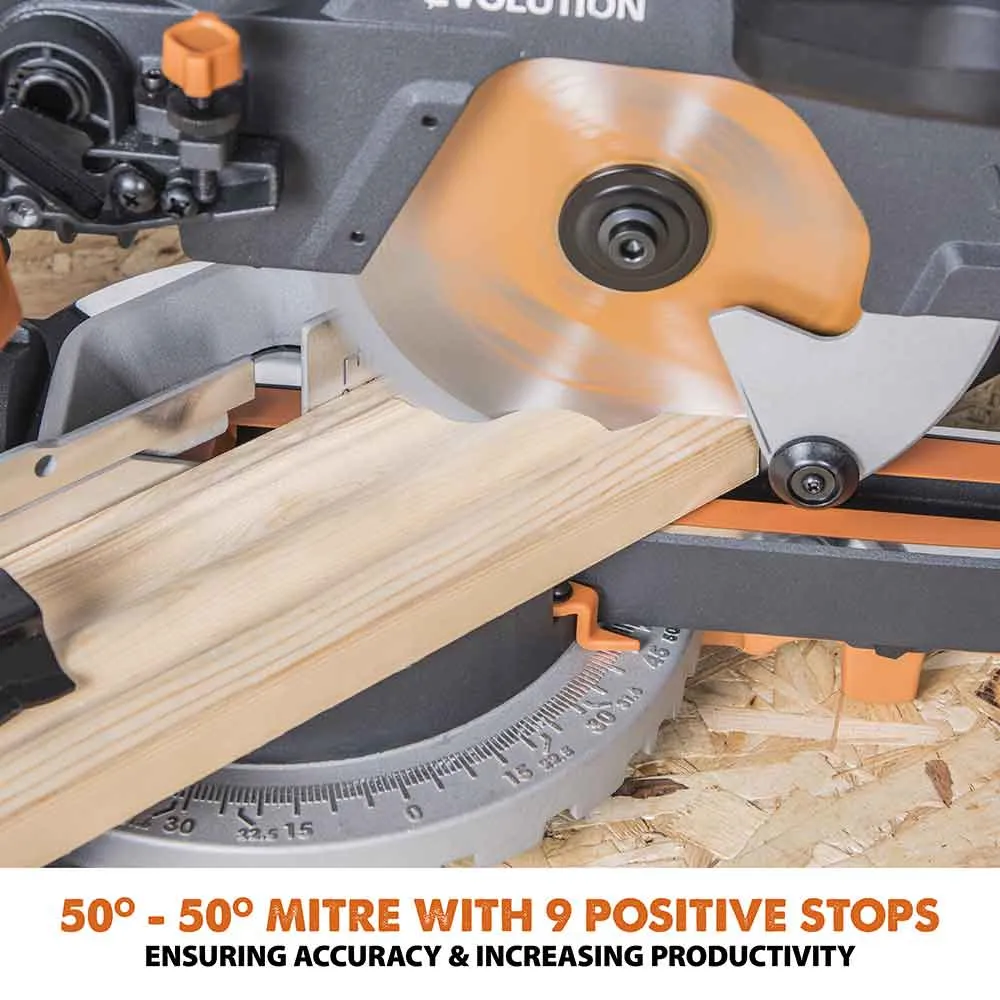

- Accurate cutting with smooth sliding functionality, adjustable depth of cut and 9 positive mitre stops.

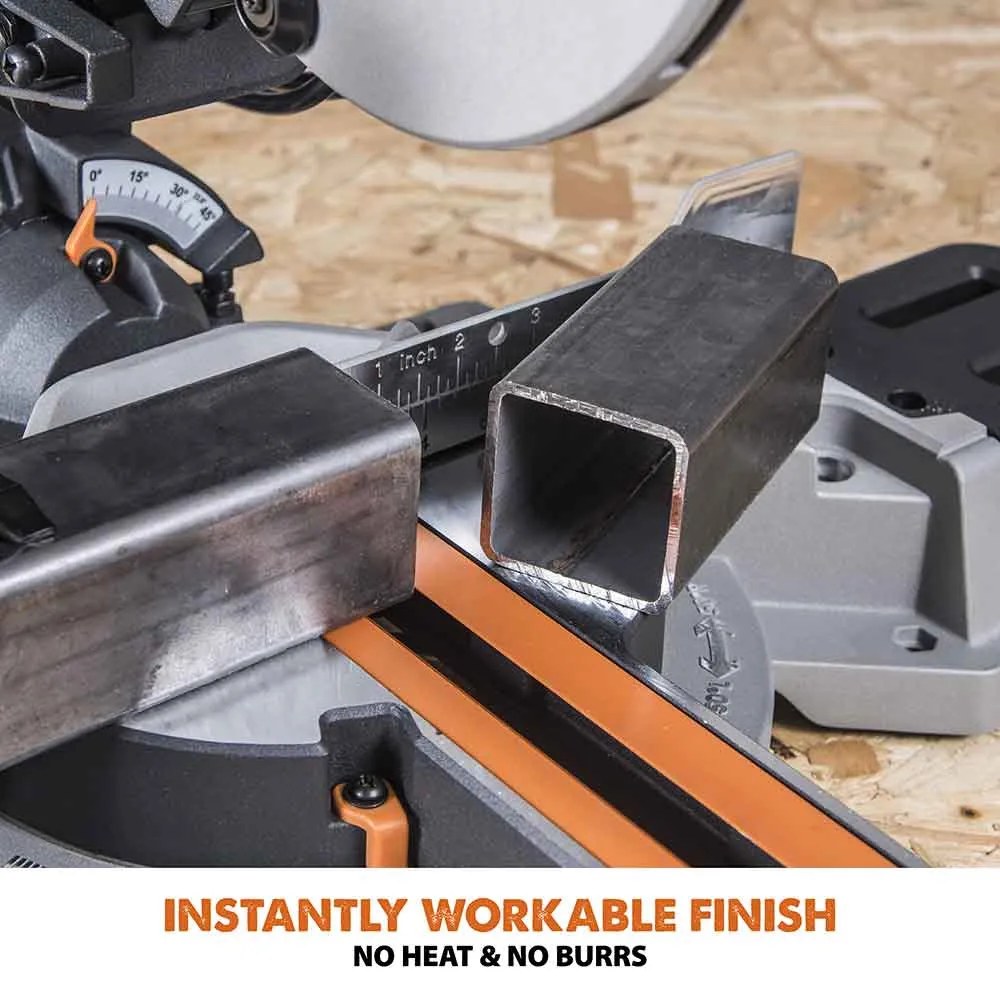

- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1000W hi-torque motor with optimised gearbox & blade system.

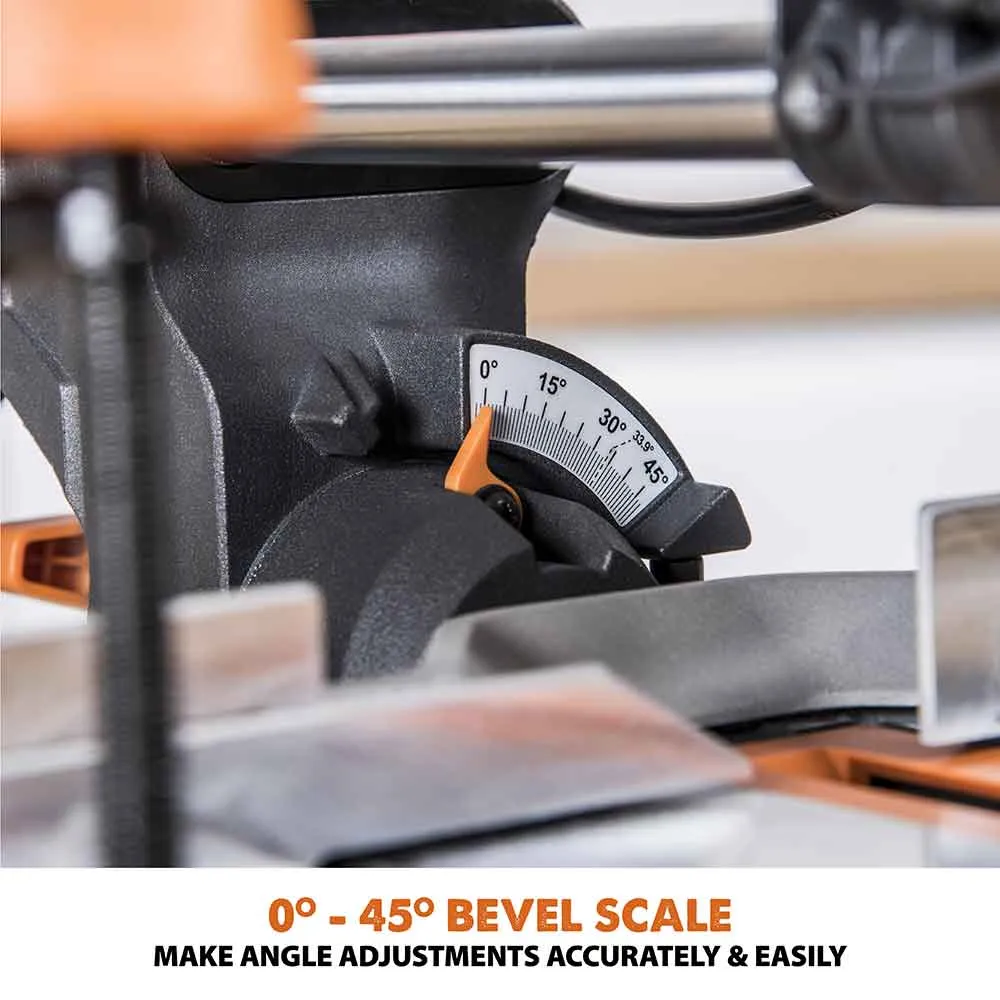

- 0° - 45° bevel tilt and 50˚ - 50˚ mitre covers all common cutting angles accurately & easily.

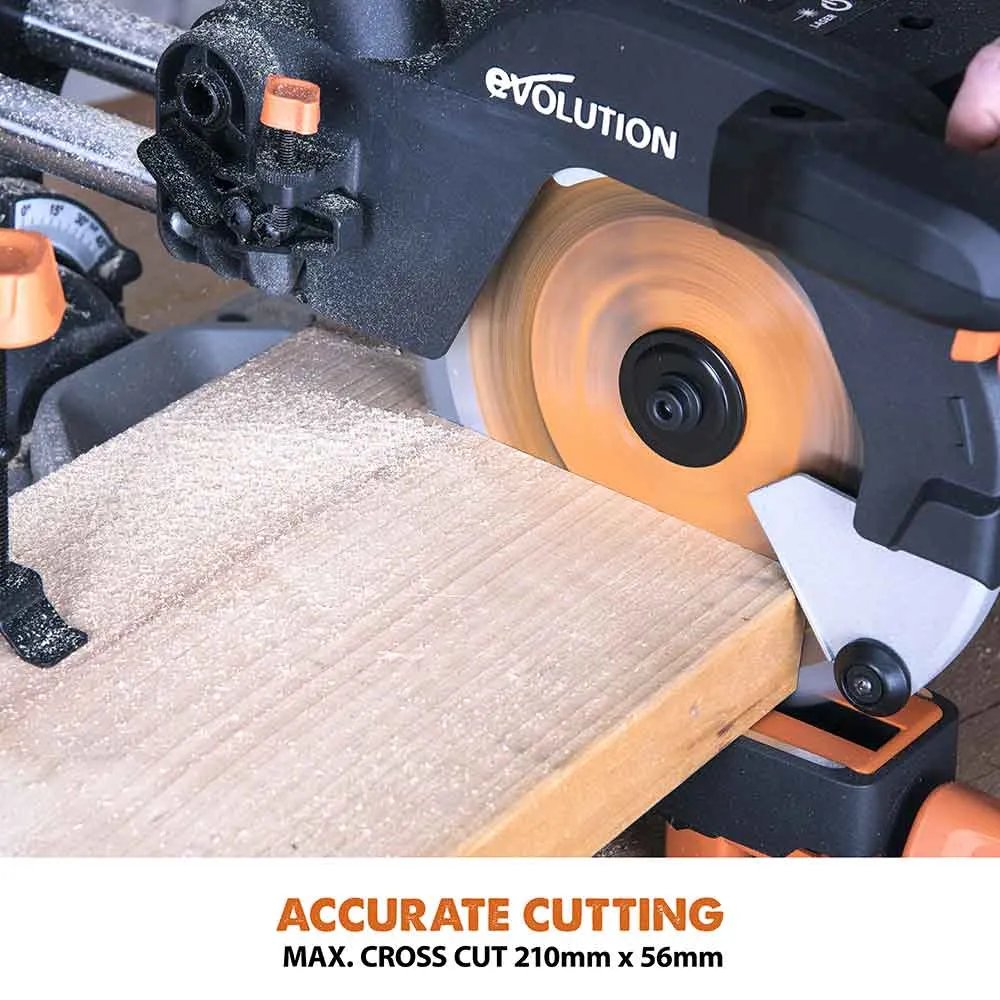

- 210mm x 56mm max. crosscut capacity.

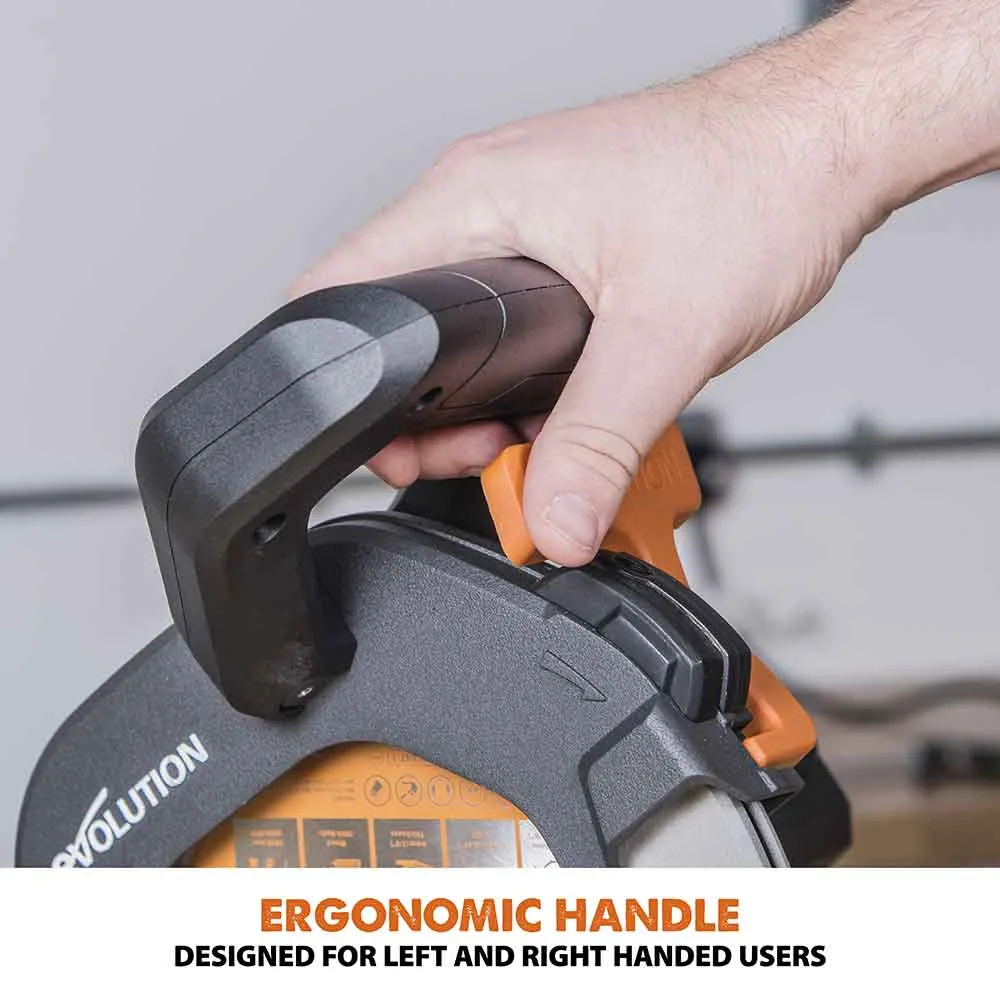

- Ergonomic trigger handle designed for left and right-handed use.
- Compact, lightweight & robust design, weighing only 8.8kg.

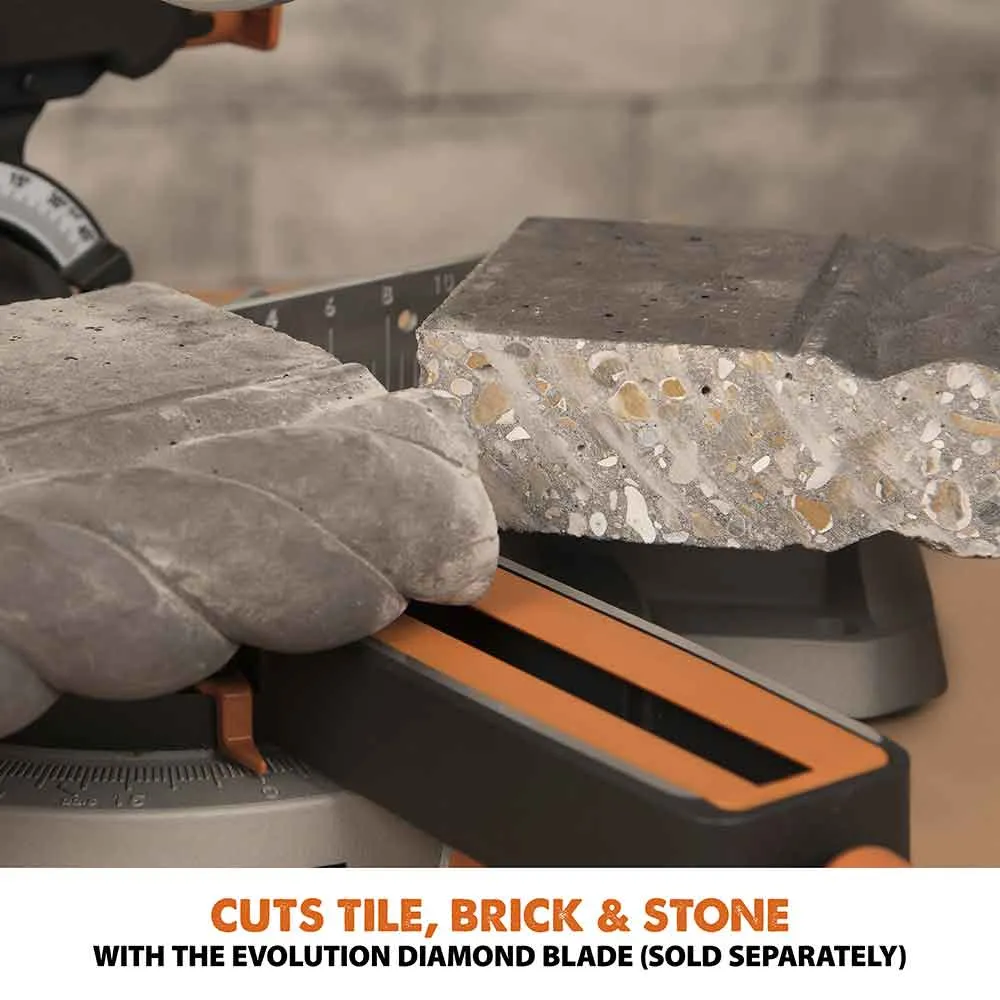

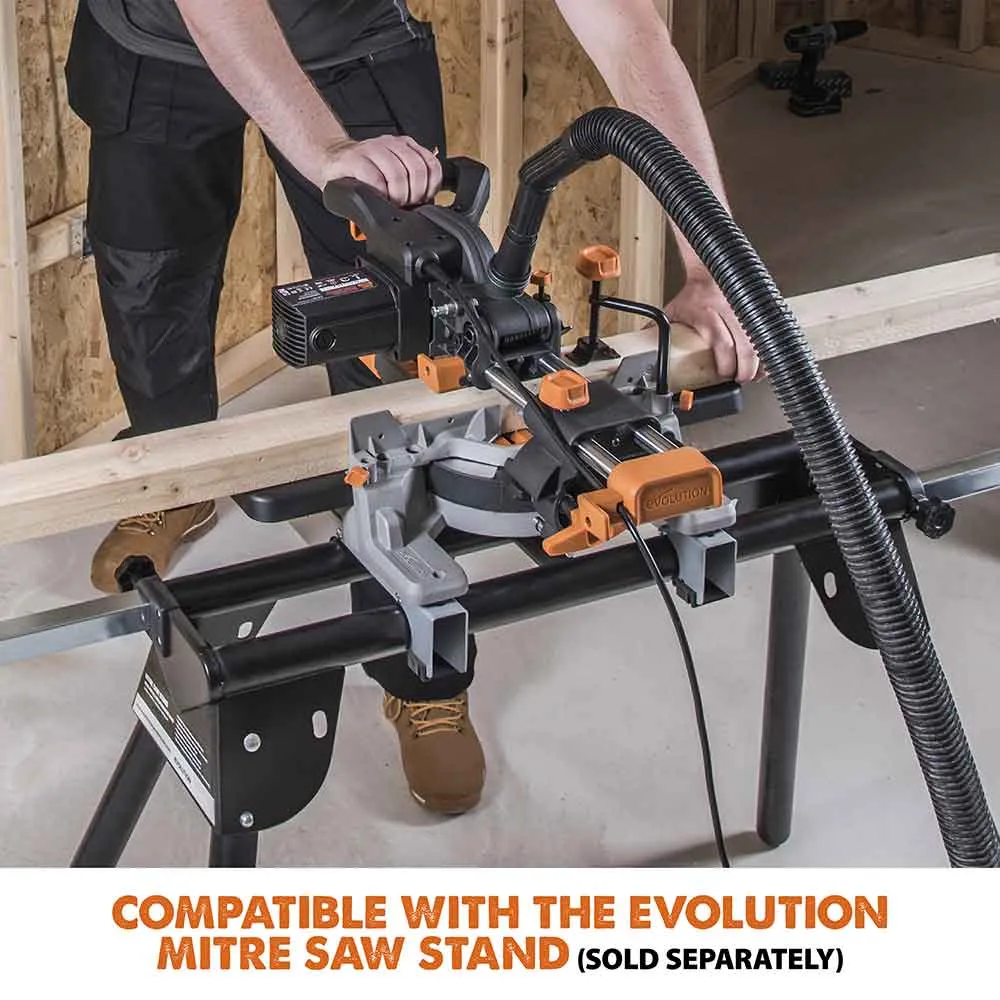

- Compatible with the Evolution Mitre Saw Stand and 185mm Diamond blade, (sold separately).

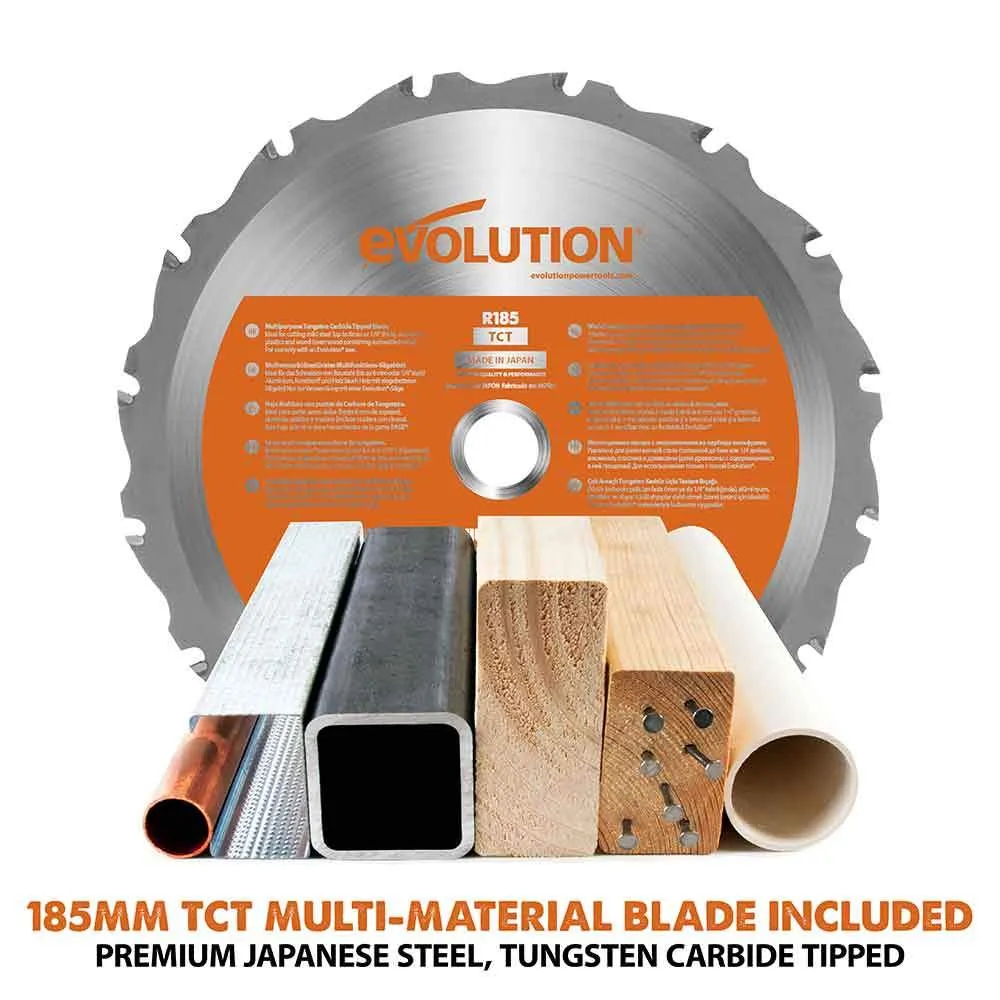

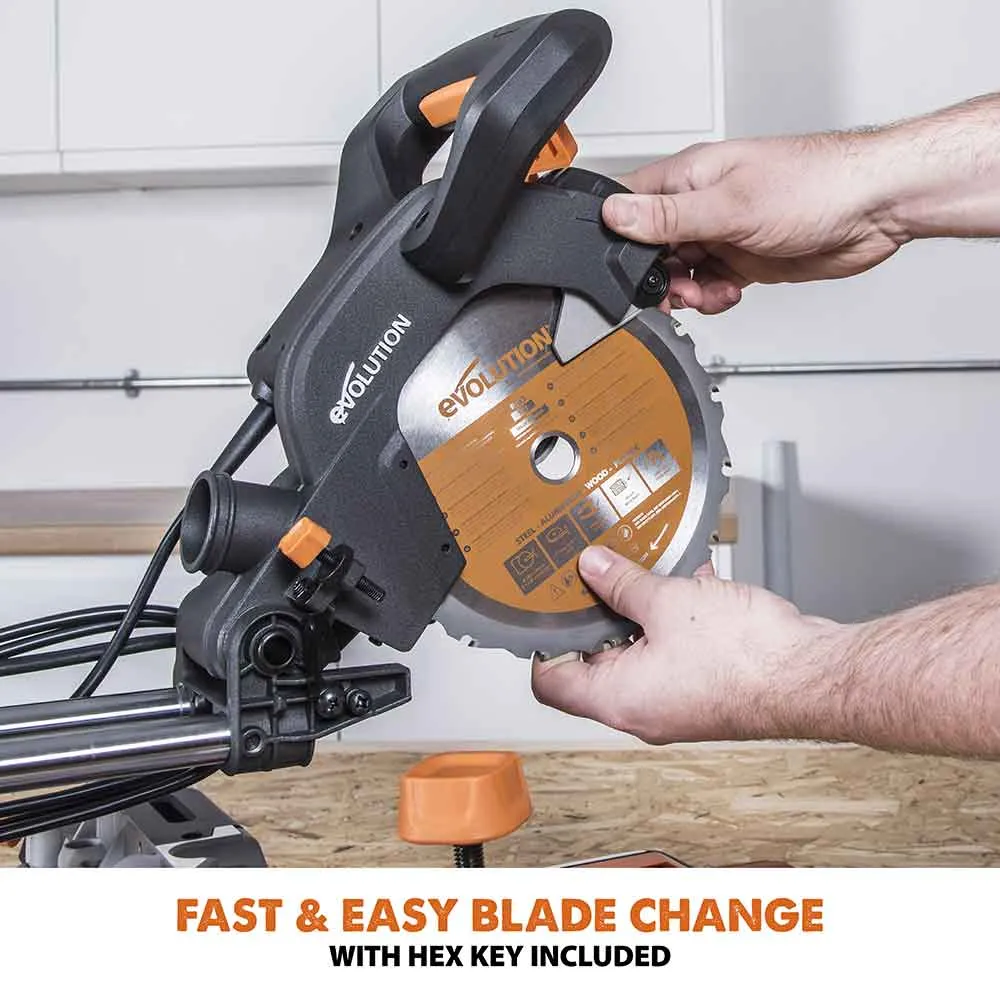

- Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
- 3 Year limited warranty.
Specifications
| Motor (110V 50Hz): | 1000 W |
| Motor (240V 50Hz): | 1000 W |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Max. Mitre: | 50° |

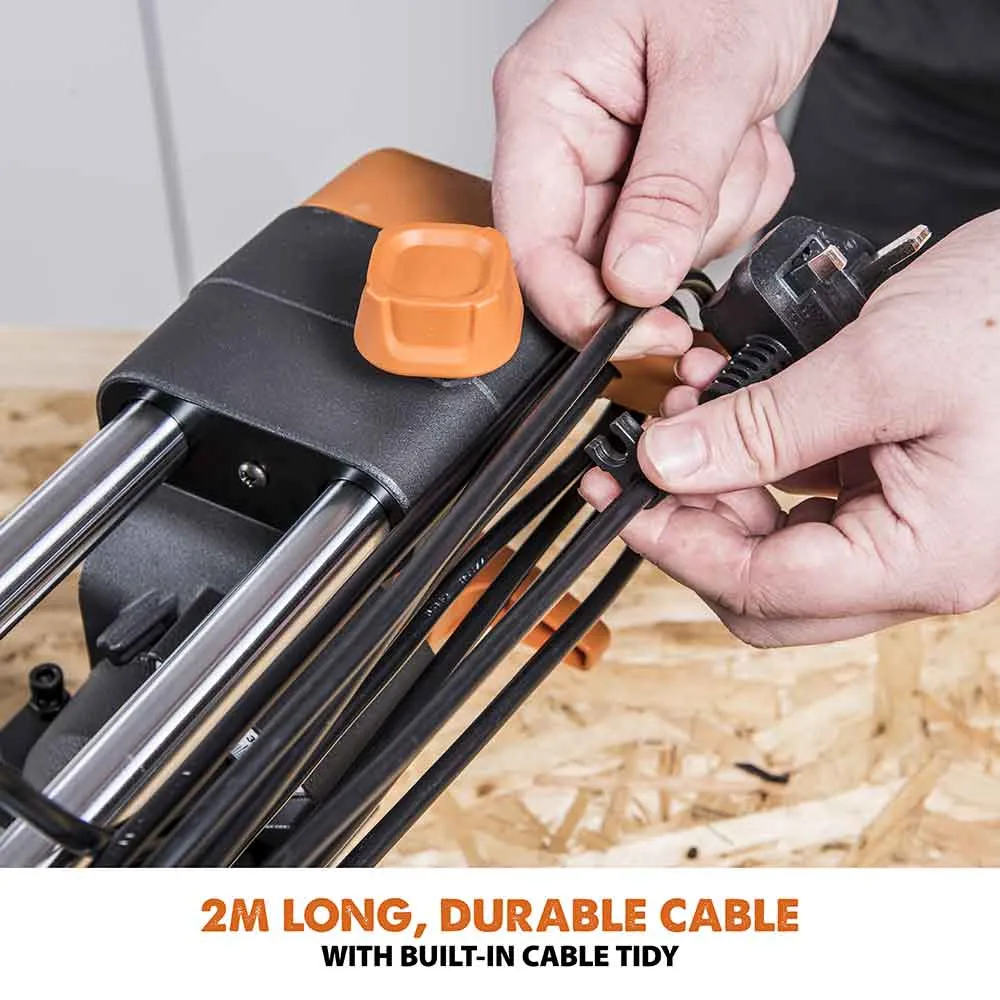

| Cable Length: | 2m |
| Blade Dia.: | 185mm |
| No. of Teeth: | 16 |
| Bore: | 20mm |
| Kerf: | 1.7mm |

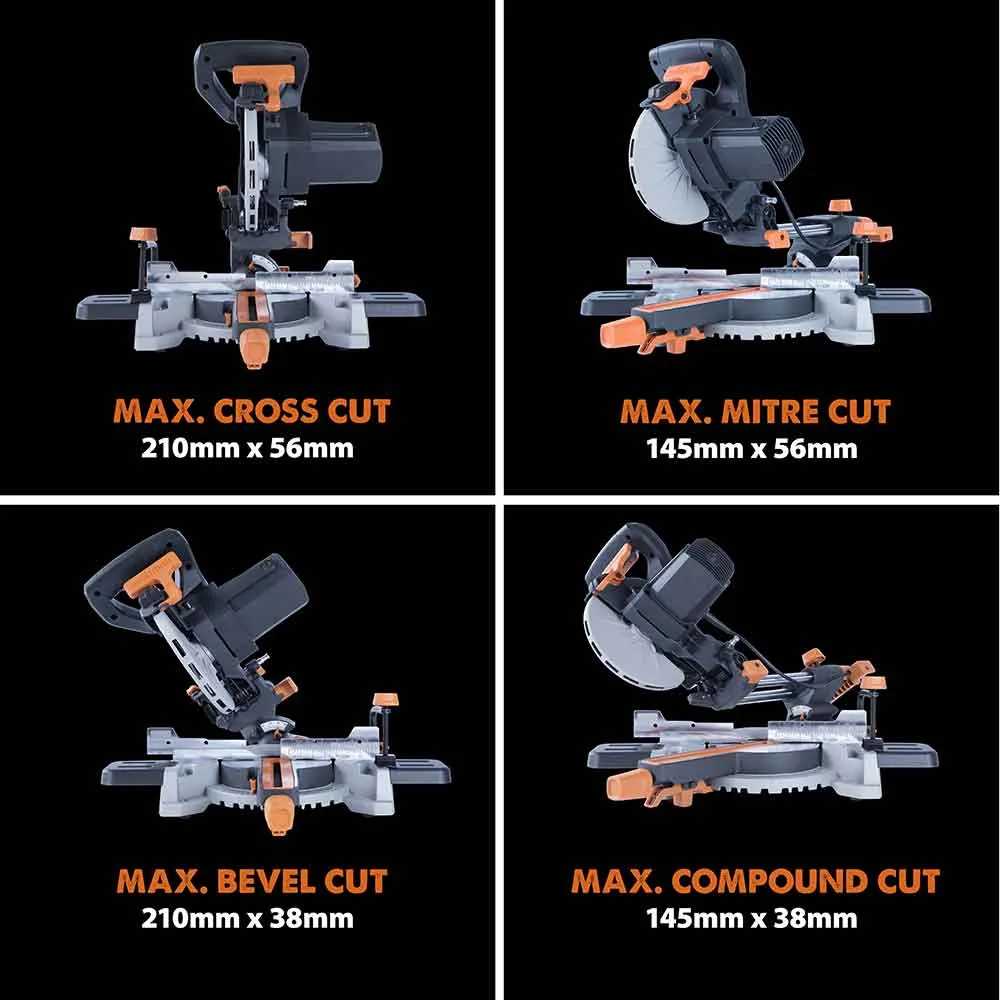

| Max. Cross Cut (0° x 0°): | 210mm x 56mm |
| Max. Bevel Cut (0° x 45°): | 210mm x 38mm |
| Max. Mitre Cut (45° x 0°): | 145mm x 56mm |
| Max. Compound Cut (45° x 45°): | 145mm x 38mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Mild Steel Plate (Max. Thickness): |
3mm |
| Product Dimensions: | 290mm x 595mm x 565mm |
| Packaging Dimensions: | 445mm x 435mm x 315mm |
| Product Weight: | 8.8kg |
| Packaged Weight: | 10.4kg |
| Sound Pressure Level LPA: |
110V: 91,9dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 110V: 104,9dB(A) K=3 dB(A) 230V: 106,1dB(A) K=3 dB(A) |
Items Included
| 16T Multi-Material TCT Blade | 2m Cable |
| Machine Table Extensions | Double Ended Hex Key (M6 & M4) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp (1 Fitted) | Self Tapping Cap Screw |
| Socket Headed Screws (Fitted) | Cable Clamp Component |
|
2 Pc Hold Down Clamp |
